Fill Hose 1.5

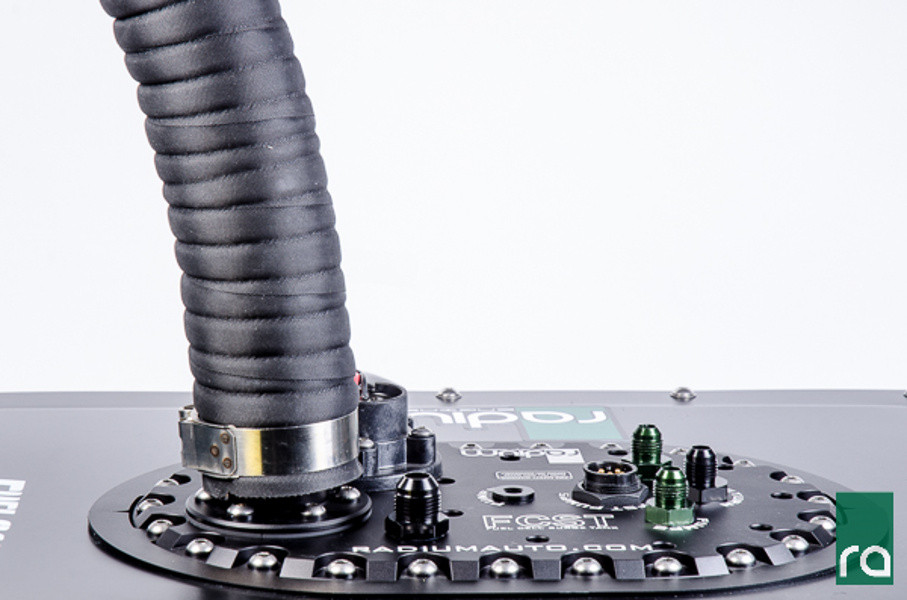

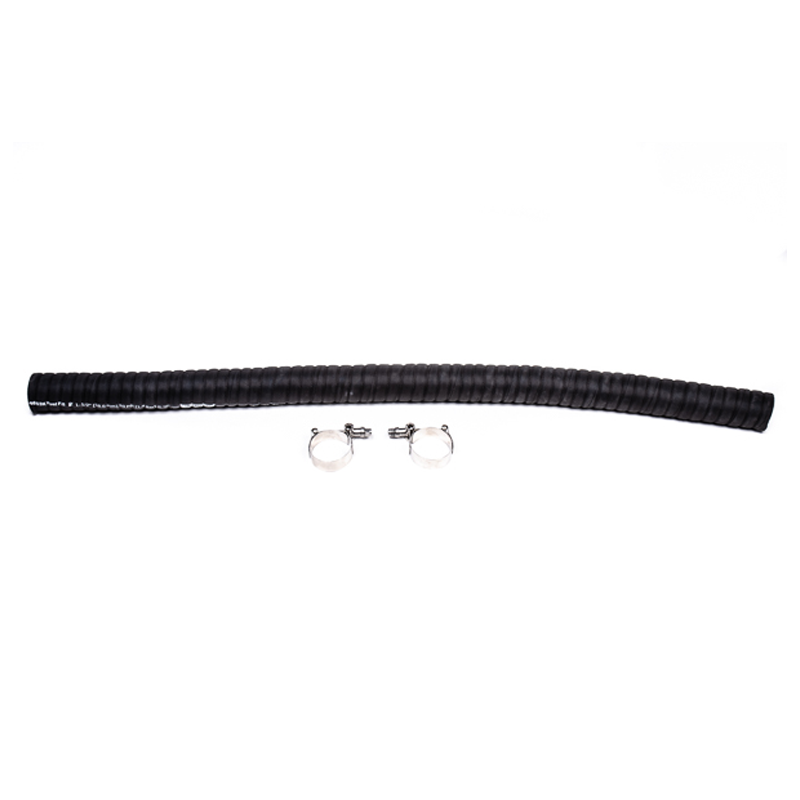

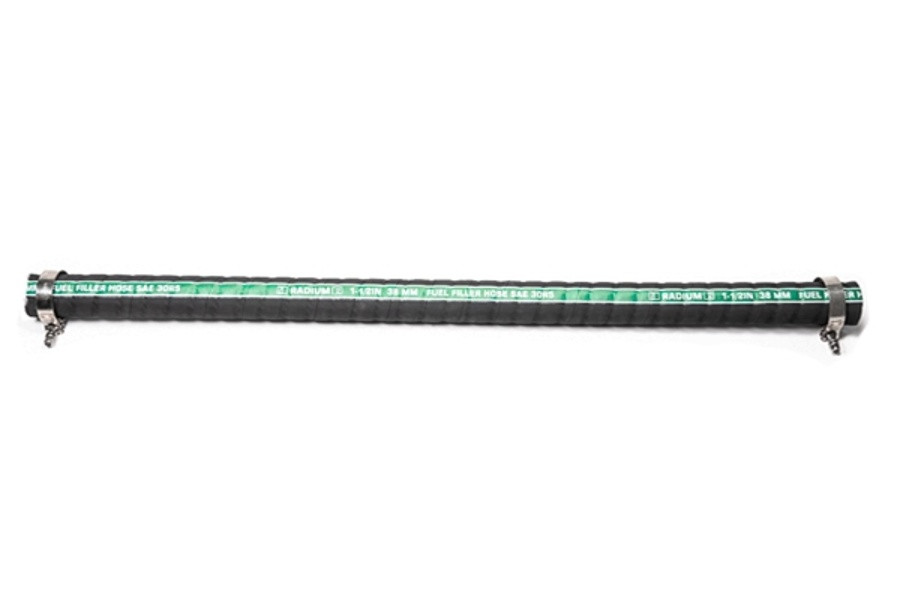

This wire reinforced hose is designed specifically for fuel filling. Internal hose diameters are available in 1.5" and 2.25" making it ideal for many applications including the options here. The hose is used to connect to a body-mounted filler. Unlike silicone fuel fill hose, this is convoluted permitting tight bends, as depicted below. For universal applications, the filler hose is 36" long that can be cut to length. 304 Stainless Steel T-Bolt clamps are included that features a protective smooth inside and permits a 360 degree seal. 20-0597 HOSE SPECIFICATIONS Inside Diameter: 1.5" (38mm) ID Wall Thickness: 0.176" (4.47mm) Length: 3 feet (914mm) Working Pressure: 20-psi maximum Burst Pressure: 90-psi mimimum Bend Radius: 5" minimum Tube Construction: Nitrile Reinforcement: Synthetic Fabric Flex: Two Embedded Helical Wires Cover: Neoprene Coated Fabric Temperature Range: -40F to 212F Standards: SAE 30R5 Made in USA
